Irate 1999-2003 Powerstroke Fuel System
UGC idpSDFUEL
Description

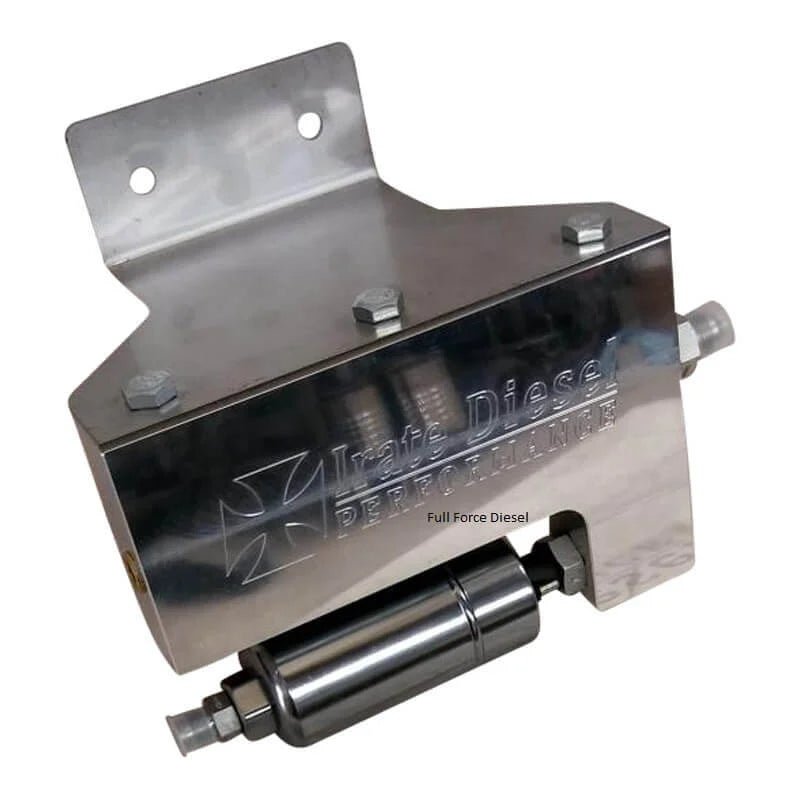

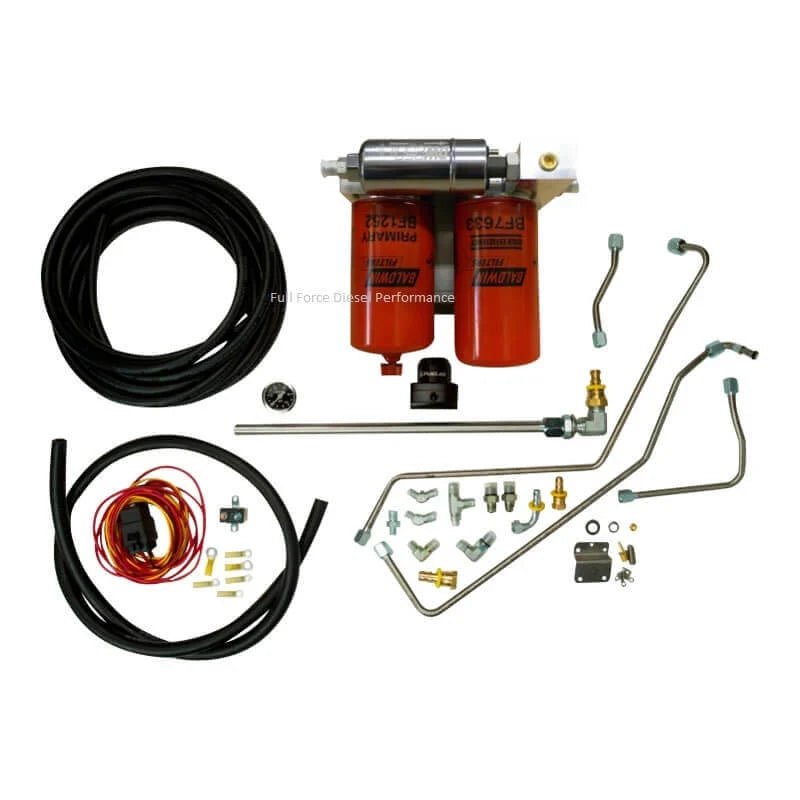

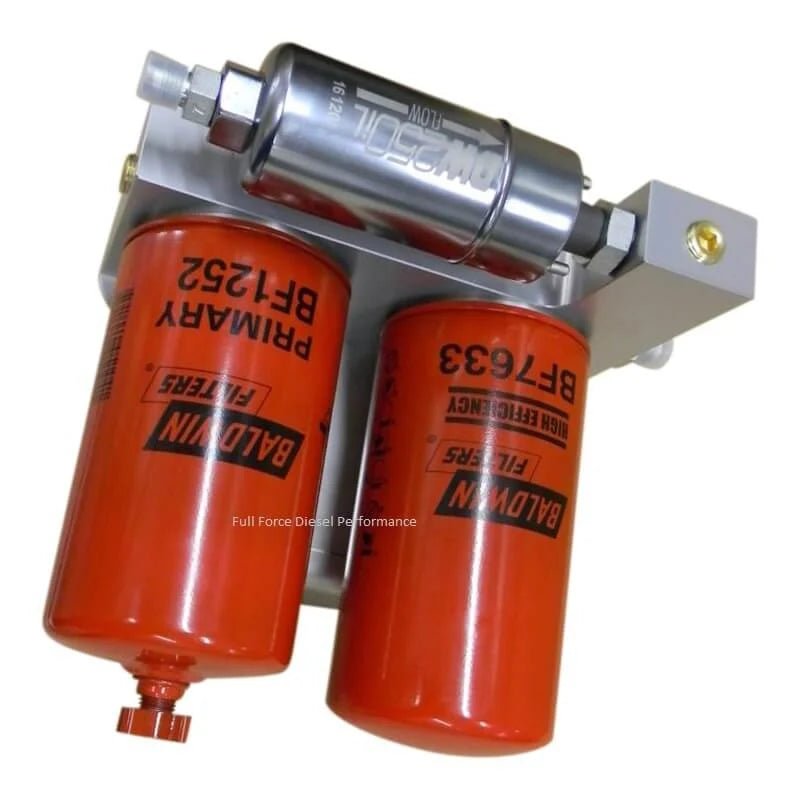

Irate Diesel Standard COMPLETE fuel system. 5/8" pickup tube, Parker 801-10 line from tank to IDP 304ss fuel bracket, Baldwin filters NEW IDP BILLET filter base, BOSCH fuel pump, 801-8 line to motor, Irate regulated return with Fuelab regulator and liquid filled gauge, 801-6 return line and wiring harness. System is complete from the tank forward and gets rid of all those pesky fuel bowl leaks and in tank pick-up issues. This system uses a pre pump screen filter that is serviceable before the pump to maximize flow to the pump and prevent starvation at the pump. From there it goes through a water separator filter then the final filter to prevent any contaminants getting to you engine!
Features

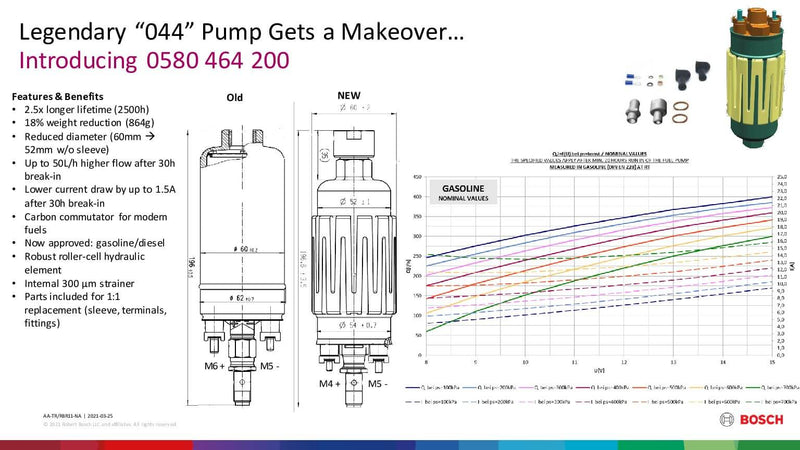

- Bosch Fuel Pump
- Regulated Return Kit
- Baldwin Filters
- Fuel Bowl Delete Kit
- 5/8" pickup tube
- Parker 801-10 line from tank to
- IDP 304ss fuel bracket Baldwin filters and filter heads
- 801-8 line to motor
- Fuelab regulator liquid filled gauge
- 801-6 return line and wiring harness.
Note
This system will support up to a 250/200 injector or support 550-600RWHP.In some instances you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting.
If you have a Gen3 or Full Force Dual HPOP set up, please let us know in the checkout so we can bend you the correct lines to clear them.
